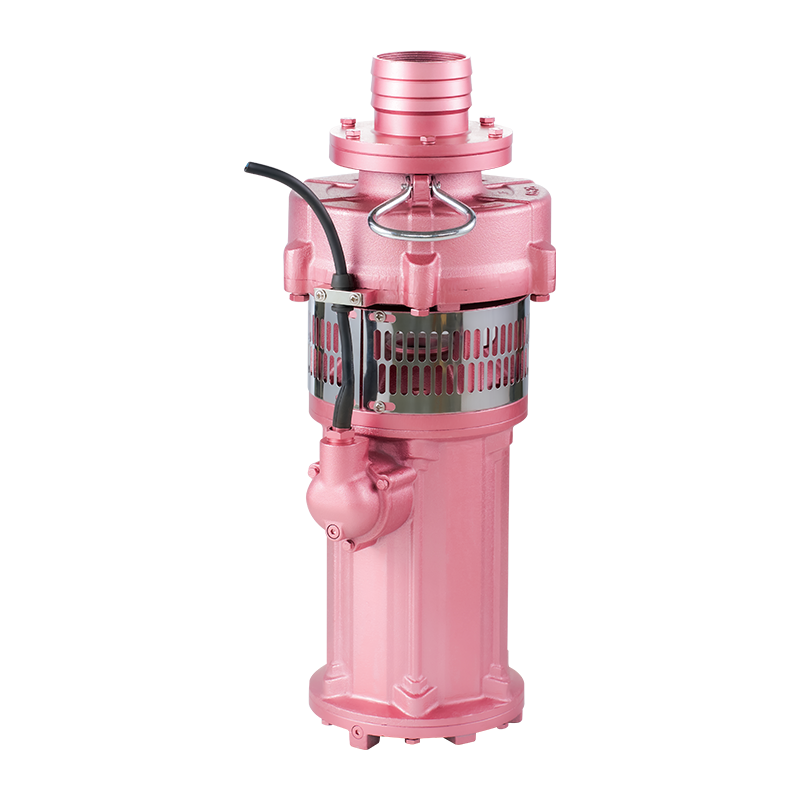

Oil Immersed High Power Submersible Pump

The oil immersed high power submersible pump is a heavy-duty solution designed for applications that require efficient water lifting and high-performance operation. The pump utilizes an oil-immersed motor system, enhancing its cooling and protection capabilities during continuous operation. Made with durable materials, the pump is engineered to handle large volumes of water and demanding environments, making it suitable for both industrial and residential uses. Its advanced design ensures reliable performance over time, even under challenging conditions.

E-mail: [email protected]

PREV：Oil Immersed Corrosion Resistant Submersible Pump
NEXT：Oil Immersed All Stainless Steel Submersible Pump

Description
Specification

Product Advantages

Efficient Cooling and Protection
One of the main advantages of the oil immersion system in this pump is its enhanced cooling capabilities. The oil bath around the motor helps dissipate heat more effectively, reducing the risk of overheating and increasing the pump's operational efficiency. This also extends the motor's lifespan, as the oil provides lubrication and reduces wear.

Durability and Longevity
The oil-immersed high power submersible pump is built with robust materials to ensure long-term durability. The oil immersion not only protects the motor but also enhances the overall structural integrity of the pump. This makes it ideal for continuous, high-demand applications, ensuring minimal downtime and reduced maintenance needs.

Energy Efficiency
The pump is designed to operate efficiently, consuming less energy while maintaining high power output. This energy-efficient design makes it an ideal choice for large-scale operations that need consistent, reliable performance without incurring high operational costs.

Safety and Reliability
The oil immersion system also provides an added layer of safety by preventing the motor from overheating or failing due to excess heat. The pump is equipped with built-in safeguards to ensure it operates within safe limits, providing dependable service for extended periods.

Product Features

Oil Immersed Motor Technology
The pump’s motor is fully immersed in oil, which not only provides great cooling but also lubricates the motor’s internal components. This technology reduces friction, help to less wear and tear, and contributes to the pump’s ability to operate in harsh conditions for longer periods.

Corrosion-Resistant Materials
The pump is constructed using high-quality, corrosion-resistant materials. The oil immersion ensures that the motor is protected from corrosive elements, while the outer casing of the pump is designed to resist rust and degradation from exposure to water, chemicals, or harsh environments.

High Power Output
The Oil Immersed High Power Submersible Pump is engineered to provide substantial power, making it capable of lifting large volumes of water from deep wells, reservoirs, or other water sources. Its high power output ensures that it can handle demanding tasks, even in industrial settings that require consistent, heavy-duty performance.

Sealed and Leak-Proof Construction
The pump is designed with a sealed structure to prevent oil leakage and ensure that the motor remains protected from water ingress. This leak-proof construction is critical for maintaining the pump’s integrity, especially in applications where the pump is submerged in water for extended periods.

Product Applications

Industrial Water Transfer
The Oil Immersed High Power Submersible Pump is highly effective in transferring large volumes of water in industrial applications. Whether used in factories, construction sites, or municipal water systems, this pump is capable of lifting and transferring water over significant distances, making it a crucial tool for water management in heavy-duty settings.

Agricultural Irrigation
In agricultural settings, this pump plays a critical role in irrigation systems. Its high power ensures that it can pump water from wells or reservoirs to irrigate fields, greenhouses, or orchards, helping to maintain crop health and ensure consistent agricultural productivity.

Wastewater Treatment
The pump is well-suited for use in wastewater treatment facilities where it can transfer effluents, remove sludge, or pump water through filtration systems. Its corrosion-resistant materials and oil-immersed motor make it ideal for handling wastewater, which can often contain particles or chemicals that would otherwise damage less durable pumps.

Flood Control and Drainage
In flood-prone areas, the Oil Immersed High Power Submersible Pump can be used for effective water removal. Its high output capacity allows it to pump large volumes of water in a short time, making it a reliable solution for flood control, drainage systems, or clearing water from low-lying areas during heavy rainfall.

Using Range
The motor pumps have a wide range of head and flow, which can be used in agriculture, architecture and industry, such as drainage, irrigation, elevating water from well, sending water to tower, and so on.

Product Introduction
QY series oil-filled submersible motor pump(here under refer to as motor pump)consists of pump, mechanical seals and motor. Pump is at the upper part of motor pump, and the structure is centrifugal or axes flow.
Motor located at the lower part of the motor pump.Which is the oil-filled three-phase electric motor. Mechanical seal is between pump and motor and it is a king of double end mechanical seals box. "O" rings are applied in all static joints of the submersible pump.

NO.	Model	Flow(m³/h)	Head(m)	Power(kW)	Speed(r/min)	Voltage(V)	Diameter of Necessary Pipe
1	QY100-5-2.2	100	5	2.2	3000	380	150
2	QY65-7-2.2	65	7	2.2	3000	380	100
3	QY40-12-2.2	40	12	2.2	3000	380	80
4	QY25-17-2.2	25	17	2.2	3000	380	65
5	QY15-26-2.2	15	26	2.2	3000	380	50
6	QY8.4-40-2.2	8.4	40	2.2	3000	380	40
7	QY160-5-3	160	5	3	3000	380	150
8	QY160-6-3	160	6	3	3000	380	150
9	QY100-7-3	100	7	3	3000	380	100
10	QY65-10-3	65	10	3	3000	380	100
11	QY40-16-3	40	16	3	3000	380	80
12	QY25-26-3	25	26	3	3000	380	65
13	QY15-36-3	15	36	3	3000	380	50
14	QY20-36-3	20	36	3	3000	380	65
15	QY8.4-50-3	8.4	50	3	3000	380	40
16	QY12.5-54/3-3	12.5	54	3	3000	380	50
17	QY260-6-4	260	6	4	3000	380	200
18	QY100-12-4	200	4.5	4	3000	380	150
19	QY65-14-4	65	14	4	3000	380	100
20	QY40-21-4	40	21	4	3000	380	80
21	QY25-32-4	25	32	4	3000	380	65
22	QY25-38/2-4	25	38	4	3000	380	65
23	QY12.5-50-4	12.5	50	4	3000	380	50
24	QY12.5-72/4-4	12.5	72	4	3000	380	50
25	QY10-60/2-4	10	60	4	3000	380	50
26	QY260-8-5.5	260	8	5.5	3000	380	200
27	QY200-10-5.5	200	10	5.5	3000	380	150
28	QY65-18-5.5	65	18	5.5	3000	380	100
29	QY40-28-5.5	40	28	5.5	3000	380	80
30 31	QY25-40-5.5 QY18-64/3-5.5	25 18	40 64	5.5 5.5	3000 3000	380 380	65 65
32	QY10-86-5.5	10	86	5.5	3000	380	50
33	QY260-10-7.5	260	10	7.5	3000	380	200
34	QY200-12-7.5	200	12	7.5	3000	380	150
35	QY65-28-7.5	65	28	7.5	3000	380	100
36	QY40-38-7.5	40	38	7.5	3000	380	80
37	QY25-50-7.5	25	50	7.5	3000	380	65
38	QY25-60/2-7.5	25	60	7.5	3000	380	65
39	QY18-84/4-7.5	18	84	7.5	3000	380	65
40	QY10-110/4-7.5	10	110	7.5	3000	380	50
41	QY18-126/6-11	18	126	11	3000	380	65
42	QY10-160-11	10	160	11	3000	380	50
43	QY25-99-11	25	99	11	3000	380	65
44	QY65-42/2-11	65	42	11	3000	380	100
45	QY160-15-11	160	15	11	3000	380	150
46	QY100-25-11	100	25	11	3000	380	100
47	QY40-58/2-11	40	58	11	3000	380	80
48	QY300-10-11	300	10	11	3000	380	150
49	QY400-7.5-11	400	7.5	11	3000	380	200
50	QY10-220/8-15	10	220	15	3000	380	50
51	QY40-87/3-15	40	87	15	3000	380	80
52	QY65-60/3-15	65	60	15	3000	380	100
53	QY100-36-15	100	36	15	3000	380	100
54	QY160-23-15	160	23	15	3000	380	150
55	QY400-9-15	400	9	15	3000	380	200
56	QY25-135/3-18.5	25	135	18.5	3000	380	65
57	QY40-100/3-18.5	40	100	18.5	3000	380	80
58	QY65-70/3-18.5	65	70	18.5	3000	380	100
59	QY80-50-18.5	80	50	18.5	3000	380	100
60	QY100-45/2-18.5	100	45	18.5	3000	380	100
61	QY160-28-18.5	160	28	18.5	3000	380	150
62	QY250-18-18.5	250	18	18.5	3000	380	150
63	QY400-11-18.5	400	11	18.5	3000	380	200
64	QY25-180/4-22	25	180	22	3000	380	65
65	QY40-120/3-22	40	120	22	3000	380	80
66	QY65-85/3-22	65	85	22	3000	380	100
67	QY100-52/2-22	100	52	22	3000	380	100
68	QY160-32-22	160	32	22	3000	380	150
69	QY200-26-22	200	26	22	3000	380	150
70	QY350-15-22	350	15	22	3000	380	200
71	QY500-12-22	500	12	22	3000	380	250
72	QY40-160/4-30	40	160	30	3000	380	80
73	QY65-105/4-30	65	105	30	3000	380	100
74	QY80-90/2-30	80	90	30	3000	380	100
75	QY100-72/2-30	100	72	30	3000	380	100
76	QY160-46/2-30	160	46	30	3000	380	150
77	QY250-28-30	250	28	30	3000	380	150
78	QY300-25-30	300	25	30	3000	380	200
79	QY400-18-30	400	18	30	3000	380	200
80	QY40-200/5-37	40	200	37	3000	380	65
81	QY65-130/2-37	65	130	37	3000	380	80
82	QY80-110/2-37	80	110	37	3000	380	100
83	QY100-90/3-37	100	90	37	3000	380	100
84	QY160-55/2-37	160	55	37	3000	380	150
85	QY200-45/2-37	200	45	37	3000	380	150
86	QY40-240/6-45	40	240	45	3000	380	65
87	QY65-158/6-45	65	158	45	3000	380	100
88	QY80-135/3-45	80	135	45	3000	380	100
89	QY100-108/3-45	100	108	45	3000	380	100
90	QY160-65/2-45	160	65	45	3000	380	150
91	QY200-52/2-45	200	52	45	3000	380	150
92	QY250-40-45	250	40	45	3000	380	200
93	QY400-28-45	400	28	45	3000	380	250
94	QY50-100/5-22	50	100	22	1450	380	80
95	QY125-43-22	125	43	22	1450	380	100
96	QY200-25-22	200	25	22	1450	380	150
97	QY300-20-22	300	20	22	1450	380	200
98	QY500-12-22	500	12	22	1450	380	250
99	QY800-7.5-22	800	7.5	22	1450	380	300
100	QY50-136/6-30	50	136	30	1450	380	80
101	QY125-60/2-30	125	60	30	1450	380	100
102	QY200-35/2-30	200	35	30	1450	380	150
103	QY300-25-30	300	25	30	1450	380	200
104	QY400-20-30	400	20	30	1450	380	200
105	QY500-16-30	500	16	30	1450	380	250
106	QY800-10-30	800	10	30	1450	380	300
107	QY125-72/2-37	125	72	37	1450	380	100
108	QY200-42/2-37	200	42	37	1450	380	150
109	QY300-32/2-37	300	32	37	1450	380	200
110	QY400-25-37	400	25	37	1450	380	200
111	QY500-20-37	500	20	37	1450	380	250
112	QY800-12-37	800	12	37	1450	380	300
113	QY125-90/3-45	125	90	45	1450	380	100
114	QY200-55/3-45	200	55	45	1450	380	150
115	QY300-40/2-45	300	40	45	1450	380	200
116	QY400-30-45	400	30	45	1450	380	200
117	QY500-25-45	500	25	45	1450	380	250
118	QY800-15-45	800	15	45	1450	380	300
119	QY100-135/3-55	100	135	55	1450	380	100
120	QY125-108/3-55	125	108	55	1450	380	100
121	QY200-66/3-55	200	66	55	1450	380	150
122	QY300-46/3-55	300	46	55	1450	380	200
123	QY400-36-55	400	36	55	1450	380	200
124	QY500-30-55	500	30	55	1450	380	250
125	QY600-24-55	600	24	55	1450	380	250
126	QY800-18-55	800	18	55	1450	380	300
127	QY100-180/4-75	100	180	75	1450	380	100
128	QY125-146/4-75	125	146	75	1450	380	150
129	QY160-100/4-75	160	100	75	1450	380	150
130	QY200-88/4-75	200	88	75	1450	380	150
131	QY160-65/2-45	160	65	45	2900	380	150
132	QY200-52/2-45	200	52	45	2900	380	150
133	QY250-40-45	250	40	45	2900	380	200
134	QY300-63/3-75	300	63	75	1450	380	200
135	QY400-50-75	400	50	75	1450	380	200
136	QY500-40-75	500	40	75	1450	380	250
137	QY600-32-75	600	32	75	1450	380	250
138	QY800-25-75	800	25	75	1450	380	300
139	QY100-220/6-90	100	220	90	1450	380	100
140	QY125-180/5-90	125	180	90	1450	380	100
141	QY160-120/5-90	160	120	90	1450	380	150
142	QY200-110/5-90	200	110	90	1450	380	150
143	QY300-80/4-90	300	80	90	1450	380	200
144	QY500-50/2-90	500	50	90	1450	380	250
145	QY600-40-90	600	40	90	1450	380	250
146	QY800-30-90	800	30	90	1450	380	300
147	QY900-25-90	900	25	90	1450	380	350
148	QY125-210/6-110	125	210	110	1450	380	100
149	QY160-140/4-110	160	140	110	1450	380	150
150	QY200-125/3-110	200	125	110	1450	380	150
151	QY300-100/5-110	300	100	110	1450	380	200
152	QY500-60/2-110	500	60	110	1450	380	250
153	QY600-50-110	600	50	110	1450	380	250
154	QY800-36-110	800	36	110	1450	380	300
155	QY160-170/5-132	160	170	132	1450	380	150
156	QY200-150/3-132	200	150	132	1450	380	150
157	QY300-120/6-132	300	120	132	1450	380	200
158	QY500-72/3-132	500	72	132	1450	380	250
159	QY600-60/2-132	600	60	132	1450	380	250
160	QY800-45-132	800	45	132	1450	380	300
161	QY900-35-132	900	35	132	1450	380	350
162	QY160-210/6-160	160	210	160	1450	380	150
163	QY200-180/3-160	200	180	160	1450	380	150
164	QY300-135/3-160	300	135	160	1450	380	200
165	QY500-88/3-160	500	88	160	1450	380	250
166	QY600-72/2-160	600	72	160	1450	380	250
167	QY800-54/2-160	800	54	160	1450	380	300
168	QY1200-12-55	1200	12	55	980	380	350
169	QY2000-7-55	2000	7	55	980	380	400
170	QY1200-16-75	1200	16	75	980	380	350
171	QY2000-10-75	2000	10	75	980	380	400
172	QY1200-20-90	1200	20	90	980	380	350
173	QY2000-12-90	2000	12	90	980	380	400
174	QY1200-24-110	1200	24	110	980	380	350
175	QY2000-13.5-110	2000	13.5	110	980	380	400
176	QY1200-28-132	1200	28	132	980	380	350
177	QY2000-17-132	2000	17	132	980	380	400
178	QY1200-32-160	1200	32	160	980	380	350
179	QY2000-21-160	2000	21	160	980	380	400
