Submersible Pump

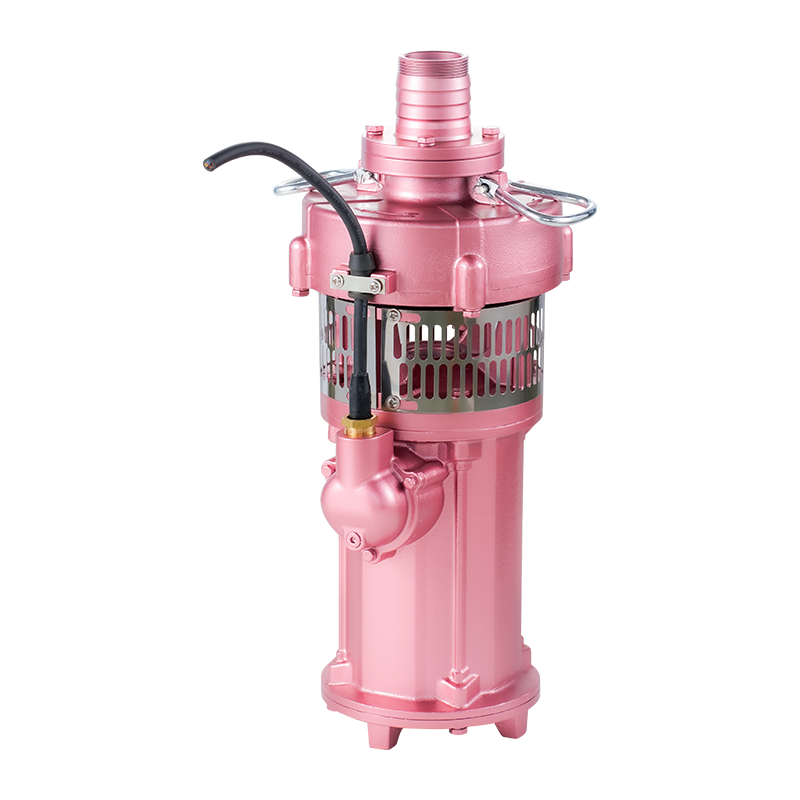

Oil Immersed Corrosion Resistant Submersible Pump

The oil immersed corrosion resistant submersible pump is designed to provide reliable and efficient water lifting solutions across a variety of industries. With a unique oil-immersed motor design, this pump is ideal for environments where both water and corrosive elements are present. It is capable of handling a range of tasks, from water supply in residential areas to more demanding applications such as industrial water management and wastewater treatment. Its corrosion-resistant construction ensures long-lasting performance, even in harsh environments, making it a versatile and durable solution for various water handling needs.

E-mail: [email protected]

PREV：Permanent Magnet Submersible Pump
NEXT： Oil Immersed High Power Submersible Pump

Description
Specification

Product Advantages

Corrosion Resistance
One of the main advantages of the Oil Immersed Corrosion Resistant Submersible Pump is its ability to resist corrosion, even in challenging environments. The pump’s components are constructed from high-quality materials that prevent rust and degradation. This feature is particularly important for applications where the pump is exposed to water that contains salts, chemicals, or other corrosive substances, ensuring long-term durability and reliability.

Oil Immersion for Enhanced Motor Protection
The oil-immersed motor is a key feature of this pump. The oil bath helps to reduce friction and heat buildup, enhancing the motor’s cooling efficiency and protecting it from wear. This technology improves the pump's overall performance and extends its operational life by preventing overheating and reducing the need for frequent maintenance.

Energy Efficiency
The pump is designed with energy efficiency in mind, ensuring minimal power consumption while maintaining high performance. The oil-immersed motor and corrosion-resistant materials work together to reduce operational costs and energy consumption, making this pump an economical choice for long-term use in both residential and industrial applications.

Reliability in Continuous Operation
The Oil Immersed Corrosion Resistant Submersible Pump is built for continuous operation in demanding environments. Its construction ensures that it can run without interruption for extended periods, providing a dependable solution for applications where constant water movement or drainage is required.

Product Features

Oil Immersed Motor Technology
The motor is fully immersed in oil, which ensures that heat is effectively dissipated, reducing the chances of motor failure due to overheating. The oil also serves as a lubricant for moving parts, minimizing wear and friction. This feature contributes to the pump's high reliability, even during long periods of continuous use.

Corrosion-Resistant Materials
The pump is made from materials that are specifically chosen for their resistance to corrosion. The stainless steel casing and other key components ensure that the pump remains intact even when exposed to harsh water conditions, including salty, acidic, or alkaline environments.

Leak-Proof Design
The oil immersion system is tightly sealed to prevent oil leakage, which ensures safe operation and protects the motor from contamination. The leak-proof construction is vital for maintaining the pump's efficiency and extending its lifespan, even in submerged conditions.

Compact and Robust Design
Despite its powerful performance, the Oil Immersed Corrosion Resistant Submersible Pump is designed to be compact and easy to install. Its robust construction means it can be used in various environments without concern for wear and tear. The pump is built to handle heavy-duty tasks without being bulky or difficult to position.

Product Applications

Industrial Water Management
In industrial applications, the Oil Immersed Corrosion Resistant Submersible Pump is ideal for managing large volumes of water, whether for cooling, irrigation, or general water transfer. Its corrosion resistance makes it suitable for use in industries such as manufacturing, mining, and chemical processing, where exposure to corrosive substances is a common concern.

Wastewater Treatment
The pump is commonly used in wastewater treatment plants to transfer effluent, sludge, or treated water. Its corrosion-resistant materials and oil-immersed motor make it well-suited for handling wastewater, which may contain harmful particles, chemicals, or other corrosive elements that would damage other pumps.

Residential Water Supply
For residential applications, the Oil Immersed Corrosion Resistant Submersible Pump is effective in transferring water from wells, tanks, or reservoirs. Its reliable operation ensures that homeowners have a steady water supply, while its energy efficiency helps keep operational costs low.

Flood Control and Drainage
The pump is an effective solution for flood control and drainage applications. It can be used to remove excess water from flood-prone areas, basements, or drainage ditches. Its high output capacity allows it to clear water quickly and efficiently, minimizing damage from flooding and ensuring areas remain dry.

Using Range
The motor pumps have a wide range of head and flow, which can be used in agriculture, architecture and industry, such as drainage, irrigation, elevating water from well, sending water to tower, and so on.

Product Introduction
QY series oil-filled submersible motor pump(here under refer to as motor pump)consists of pump, mechanical seals and motor. Pump is at the upper part of motor pump, and the structure is centrifugal or axes flow.
Motor located at the lower part of the motor pump.Which is the oil-filled three-phase electric motor. Mechanical seal is between pump and motor and it is a king of double end mechanical seals box. "O" rings are applied in all static joints of the submersible pump.

NO.	Model	Flow(m³/h)	Head(m)	Power(kW)	Speed(r/min)	Voltage(V)	Diameter of Necessary Pipe
1	QY100-5-2.2	100	5	2.2	3000	380	150
2	QY65-7-2.2	65	7	2.2	3000	380	100
3	QY40-12-2.2	40	12	2.2	3000	380	80
4	QY25-17-2.2	25	17	2.2	3000	380	65
5	QY15-26-2.2	15	26	2.2	3000	380	50
6	QY8.4-40-2.2	8.4	40	2.2	3000	380	40
7	QY160-5-3	160	5	3	3000	380	150
8	QY160-6-3	160	6	3	3000	380	150
9	QY100-7-3	100	7	3	3000	380	100
10	QY65-10-3	65	10	3	3000	380	100
11	QY40-16-3	40	16	3	3000	380	80
12	QY25-26-3	25	26	3	3000	380	65
13	QY15-36-3	15	36	3	3000	380	50
14	QY20-36-3	20	36	3	3000	380	65
15	QY8.4-50-3	8.4	50	3	3000	380	40
16	QY12.5-54/3-3	12.5	54	3	3000	380	50
17	QY260-6-4	260	6	4	3000	380	200
18	QY100-12-4	200	4.5	4	3000	380	150
19	QY65-14-4	65	14	4	3000	380	100
20	QY40-21-4	40	21	4	3000	380	80
21	QY25-32-4	25	32	4	3000	380	65
22	QY25-38/2-4	25	38	4	3000	380	65
23	QY12.5-50-4	12.5	50	4	3000	380	50
24	QY12.5-72/4-4	12.5	72	4	3000	380	50
25	QY10-60/2-4	10	60	4	3000	380	50
26	QY260-8-5.5	260	8	5.5	3000	380	200
27	QY200-10-5.5	200	10	5.5	3000	380	150
28	QY65-18-5.5	65	18	5.5	3000	380	100
29	QY40-28-5.5	40	28	5.5	3000	380	80
30 31	QY25-40-5.5 QY18-64/3-5.5	25 18	40 64	5.5 5.5	3000 3000	380 380	65 65
32	QY10-86-5.5	10	86	5.5	3000	380	50
33	QY260-10-7.5	260	10	7.5	3000	380	200
34	QY200-12-7.5	200	12	7.5	3000	380	150
35	QY65-28-7.5	65	28	7.5	3000	380	100
36	QY40-38-7.5	40	38	7.5	3000	380	80
37	QY25-50-7.5	25	50	7.5	3000	380	65
38	QY25-60/2-7.5	25	60	7.5	3000	380	65
39	QY18-84/4-7.5	18	84	7.5	3000	380	65
40	QY10-110/4-7.5	10	110	7.5	3000	380	50
41	QY18-126/6-11	18	126	11	3000	380	65
42	QY10-160-11	10	160	11	3000	380	50
43	QY25-99-11	25	99	11	3000	380	65
44	QY65-42/2-11	65	42	11	3000	380	100
45	QY160-15-11	160	15	11	3000	380	150
46	QY100-25-11	100	25	11	3000	380	100
47	QY40-58/2-11	40	58	11	3000	380	80
48	QY300-10-11	300	10	11	3000	380	150
49	QY400-7.5-11	400	7.5	11	3000	380	200
50	QY10-220/8-15	10	220	15	3000	380	50
51	QY40-87/3-15	40	87	15	3000	380	80
52	QY65-60/3-15	65	60	15	3000	380	100
53	QY100-36-15	100	36	15	3000	380	100
54	QY160-23-15	160	23	15	3000	380	150
55	QY400-9-15	400	9	15	3000	380	200
56	QY25-135/3-18.5	25	135	18.5	3000	380	65
57	QY40-100/3-18.5	40	100	18.5	3000	380	80
58	QY65-70/3-18.5	65	70	18.5	3000	380	100
59	QY80-50-18.5	80	50	18.5	3000	380	100
60	QY100-45/2-18.5	100	45	18.5	3000	380	100
61	QY160-28-18.5	160	28	18.5	3000	380	150
62	QY250-18-18.5	250	18	18.5	3000	380	150
63	QY400-11-18.5	400	11	18.5	3000	380	200
64	QY25-180/4-22	25	180	22	3000	380	65
65	QY40-120/3-22	40	120	22	3000	380	80
66	QY65-85/3-22	65	85	22	3000	380	100
67	QY100-52/2-22	100	52	22	3000	380	100
68	QY160-32-22	160	32	22	3000	380	150
69	QY200-26-22	200	26	22	3000	380	150
70	QY350-15-22	350	15	22	3000	380	200
71	QY500-12-22	500	12	22	3000	380	250
72	QY40-160/4-30	40	160	30	3000	380	80
73	QY65-105/4-30	65	105	30	3000	380	100
74	QY80-90/2-30	80	90	30	3000	380	100
75	QY100-72/2-30	100	72	30	3000	380	100
76	QY160-46/2-30	160	46	30	3000	380	150
77	QY250-28-30	250	28	30	3000	380	150
78	QY300-25-30	300	25	30	3000	380	200
79	QY400-18-30	400	18	30	3000	380	200
80	QY40-200/5-37	40	200	37	3000	380	65
81	QY65-130/2-37	65	130	37	3000	380	80
82	QY80-110/2-37	80	110	37	3000	380	100
83	QY100-90/3-37	100	90	37	3000	380	100
84	QY160-55/2-37	160	55	37	3000	380	150
85	QY200-45/2-37	200	45	37	3000	380	150
86	QY40-240/6-45	40	240	45	3000	380	65
87	QY65-158/6-45	65	158	45	3000	380	100
88	QY80-135/3-45	80	135	45	3000	380	100
89	QY100-108/3-45	100	108	45	3000	380	100
90	QY160-65/2-45	160	65	45	3000	380	150
91	QY200-52/2-45	200	52	45	3000	380	150
92	QY250-40-45	250	40	45	3000	380	200
93	QY400-28-45	400	28	45	3000	380	250
94	QY50-100/5-22	50	100	22	1450	380	80
95	QY125-43-22	125	43	22	1450	380	100
96	QY200-25-22	200	25	22	1450	380	150
97	QY300-20-22	300	20	22	1450	380	200
98	QY500-12-22	500	12	22	1450	380	250
99	QY800-7.5-22	800	7.5	22	1450	380	300
100	QY50-136/6-30	50	136	30	1450	380	80
101	QY125-60/2-30	125	60	30	1450	380	100
102	QY200-35/2-30	200	35	30	1450	380	150
103	QY300-25-30	300	25	30	1450	380	200
104	QY400-20-30	400	20	30	1450	380	200
105	QY500-16-30	500	16	30	1450	380	250
106	QY800-10-30	800	10	30	1450	380	300
107	QY125-72/2-37	125	72	37	1450	380	100
108	QY200-42/2-37	200	42	37	1450	380	150
109	QY300-32/2-37	300	32	37	1450	380	200
110	QY400-25-37	400	25	37	1450	380	200
111	QY500-20-37	500	20	37	1450	380	250
112	QY800-12-37	800	12	37	1450	380	300
113	QY125-90/3-45	125	90	45	1450	380	100
114	QY200-55/3-45	200	55	45	1450	380	150
115	QY300-40/2-45	300	40	45	1450	380	200
116	QY400-30-45	400	30	45	1450	380	200
117	QY500-25-45	500	25	45	1450	380	250
118	QY800-15-45	800	15	45	1450	380	300
119	QY100-135/3-55	100	135	55	1450	380	100
120	QY125-108/3-55	125	108	55	1450	380	100
121	QY200-66/3-55	200	66	55	1450	380	150
122	QY300-46/3-55	300	46	55	1450	380	200
123	QY400-36-55	400	36	55	1450	380	200
124	QY500-30-55	500	30	55	1450	380	250
125	QY600-24-55	600	24	55	1450	380	250
126	QY800-18-55	800	18	55	1450	380	300
127	QY100-180/4-75	100	180	75	1450	380	100
128	QY125-146/4-75	125	146	75	1450	380	150
129	QY160-100/4-75	160	100	75	1450	380	150
130	QY200-88/4-75	200	88	75	1450	380	150
131	QY160-65/2-45	160	65	45	2900	380	150
132	QY200-52/2-45	200	52	45	2900	380	150
133	QY250-40-45	250	40	45	2900	380	200
134	QY300-63/3-75	300	63	75	1450	380	200
135	QY400-50-75	400	50	75	1450	380	200
136	QY500-40-75	500	40	75	1450	380	250
137	QY600-32-75	600	32	75	1450	380	250
138	QY800-25-75	800	25	75	1450	380	300
139	QY100-220/6-90	100	220	90	1450	380	100
140	QY125-180/5-90	125	180	90	1450	380	100
141	QY160-120/5-90	160	120	90	1450	380	150
142	QY200-110/5-90	200	110	90	1450	380	150
143	QY300-80/4-90	300	80	90	1450	380	200
144	QY500-50/2-90	500	50	90	1450	380	250
145	QY600-40-90	600	40	90	1450	380	250
146	QY800-30-90	800	30	90	1450	380	300
147	QY900-25-90	900	25	90	1450	380	350
148	QY125-210/6-110	125	210	110	1450	380	100
149	QY160-140/4-110	160	140	110	1450	380	150
150	QY200-125/3-110	200	125	110	1450	380	150
151	QY300-100/5-110	300	100	110	1450	380	200
152	QY500-60/2-110	500	60	110	1450	380	250
153	QY600-50-110	600	50	110	1450	380	250
154	QY800-36-110	800	36	110	1450	380	300
155	QY160-170/5-132	160	170	132	1450	380	150
156	QY200-150/3-132	200	150	132	1450	380	150
157	QY300-120/6-132	300	120	132	1450	380	200
158	QY500-72/3-132	500	72	132	1450	380	250
159	QY600-60/2-132	600	60	132	1450	380	250
160	QY800-45-132	800	45	132	1450	380	300
161	QY900-35-132	900	35	132	1450	380	350
162	QY160-210/6-160	160	210	160	1450	380	150
163	QY200-180/3-160	200	180	160	1450	380	150
164	QY300-135/3-160	300	135	160	1450	380	200
165	QY500-88/3-160	500	88	160	1450	380	250
166	QY600-72/2-160	600	72	160	1450	380	250
167	QY800-54/2-160	800	54	160	1450	380	300
168	QY1200-12-55	1200	12	55	980	380	350
169	QY2000-7-55	2000	7	55	980	380	400
170	QY1200-16-75	1200	16	75	980	380	350
171	QY2000-10-75	2000	10	75	980	380	400
172	QY1200-20-90	1200	20	90	980	380	350
173	QY2000-12-90	2000	12	90	980	380	400
174	QY1200-24-110	1200	24	110	980	380	350
175	QY2000-13.5-110	2000	13.5	110	980	380	400
176	QY1200-28-132	1200	28	132	980	380	350
177	QY2000-17-132	2000	17	132	980	380	400
178	QY1200-32-160	1200	32	160	980	380	350
179	QY2000-21-160	2000	21	160	980	380	400
